LightingWill U02 Silver Aluminum Rigid LED Strip Light - DC12V | SMD5630 72 LEDs/M | 17×9mm | 0.5M/1M | Warm White / Natural White / Cool White| Silver Finish | Non-Waterproof | for Indoor Accent & Display Lighting | 10 / 50PCS
LightingWill U02 Silver Aluminum Rigid LED Strip Light - DC12V | SMD5630 72 LEDs/M | 17×9mm | 0.5M/1M | Warm White / Natural White / Cool White| Silver Finish | Non-Waterproof | for Indoor Accent & Display Lighting | 10 / 50PCS
Package Included
| Length | Light Color | Package Quantity |
|---|---|---|

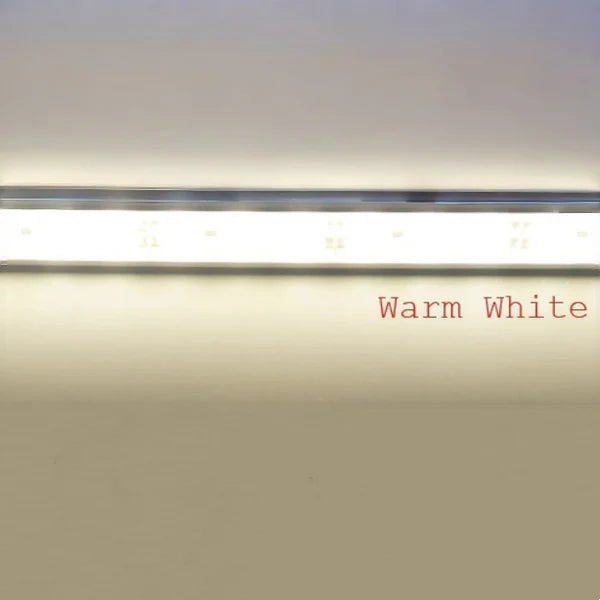

| 0.5M | 3000K-3500K (Warm White) | 10PCS |
| 0.5M | 3000K-3500K (Warm White) | 50PCS |

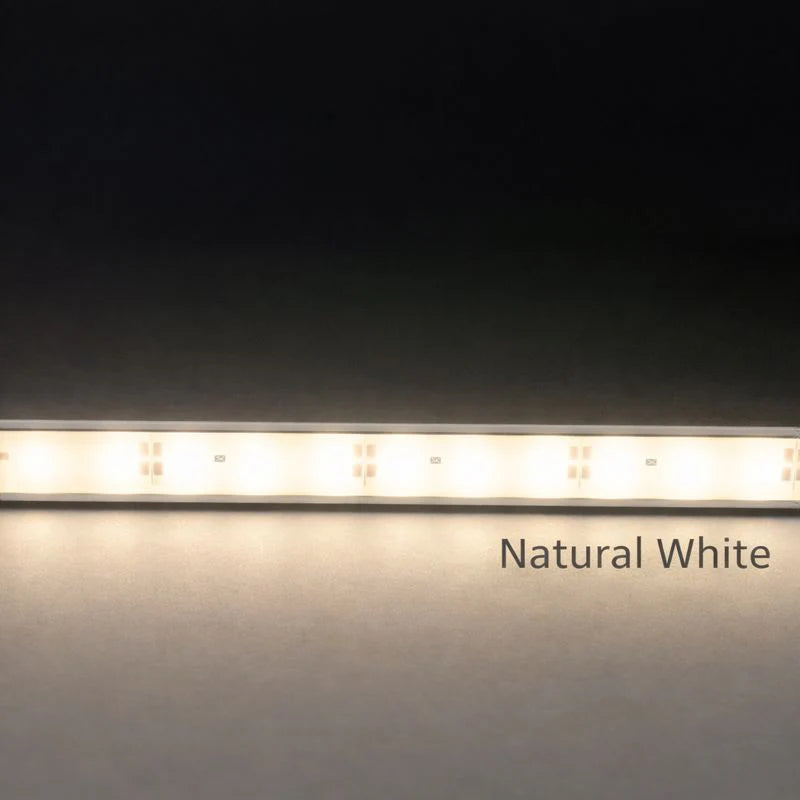

| 0.5M | 4000K-4500K (Natural White) | 10PCS |
| 0.5M | 4000K-4500K (Natural White) | 50PCS |

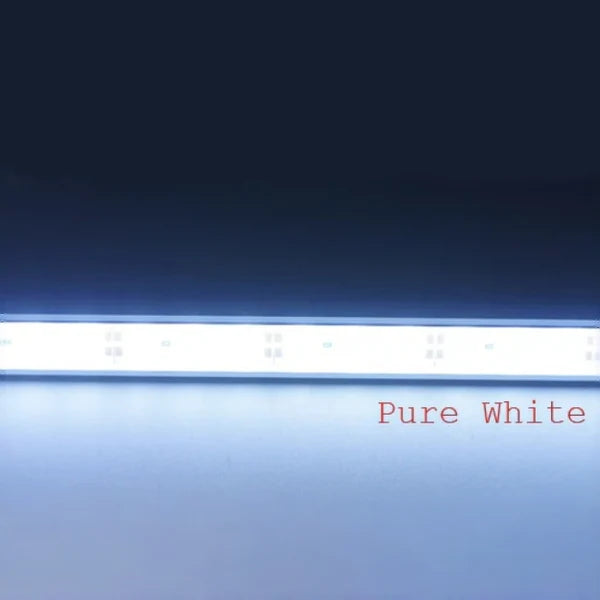

| 0.5M | 8000K-12000K (Cool White) | 10PCS |
| 0.5M | 8000K-12000K (Cool White) | 50PCS |
| 1M | 3000K-3500K (Warm White) | 10PCS |
| 1M | 3000K-3500K (Warm White) | 50PCS |
| 1M | 4000K-4500K (Natural White) | 10PCS |
| 1M | 4000K-4500K (Natural White) | 50PCS |
| 1M | 8000K-12000K (Cool White) | 10PCS |
| 1M | 8000K-12000K (Cool White) | 50PCS |
Features
-

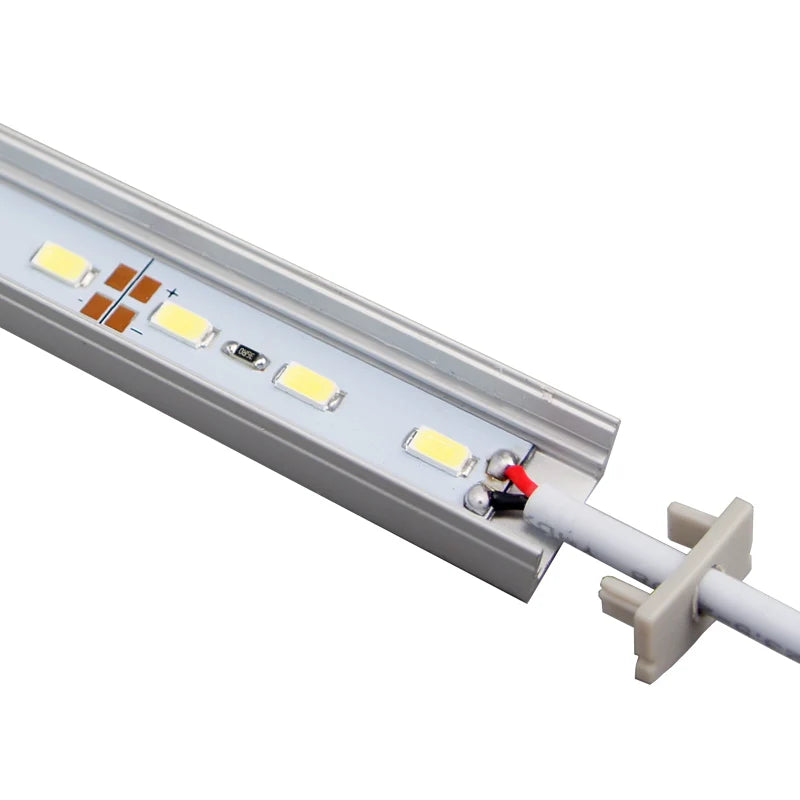

High Brightness & Uniform Illumination – Equipped with 72pcs SMD5630 LEDs per meter, delivering high lumen output and consistent brightness for professional lighting applications.
-

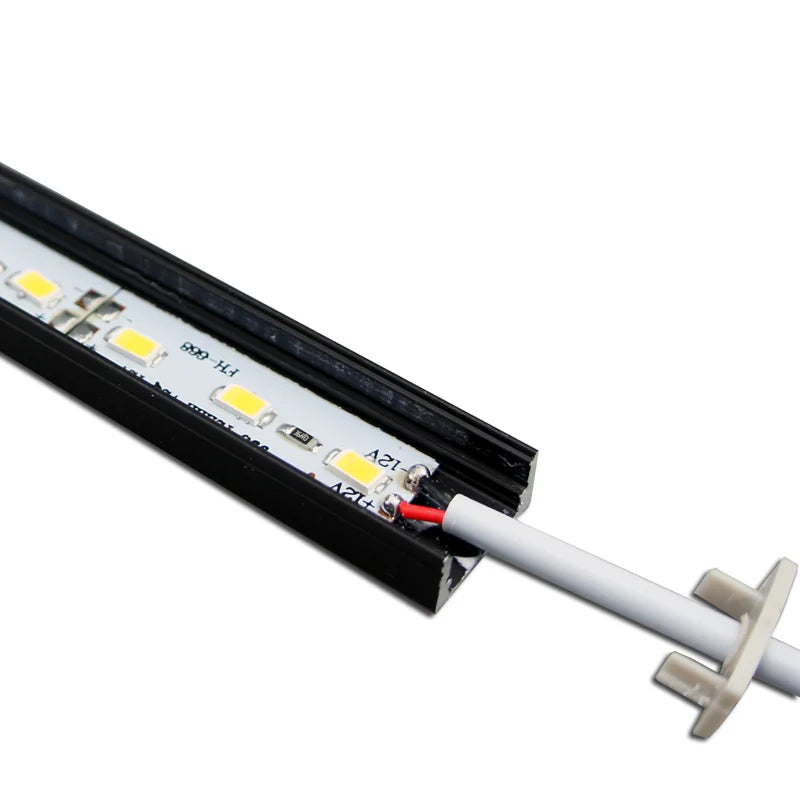

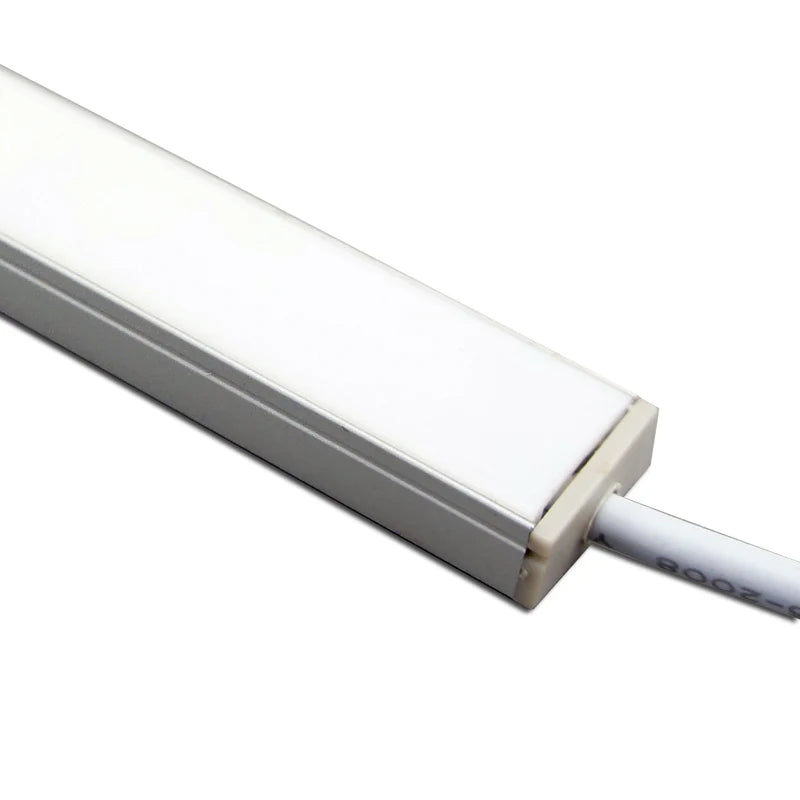

Durable Aluminum Housing (17×9mm Profile) – Features a sleek and sturdy aluminum shell that enhances heat dissipation, prolonging LED lifespan and maintaining stable performance.
-
Multiple Color Temperatures Available – Choose from 3000K (Warm White), 4000K (Neutral White), or 6000K (Cool White) to match different indoor lighting atmospheres.
-
Stylish Finish Options – Offered in Black or Silver anodized finishes, perfectly blending with modern interiors and architectural designs.
-
Easy Installation & Versatile Use – Available in 0.5m (20’’) and 1m (40’’) lengths; ideal for under-cabinet, shelf, showcase, or accent lighting in residential and commercial spaces.
Specification
| Item | U02 Surface Mounting Aluminum Rigid LED Strip Light |
| LED Type | SMD5630 |
| LED Density | 72 LEDs / Meter |
| Power Consumption | 18W / Meter |
| Voltage Options | 12V DC |
| Color Temperatures | 3000K / 4000K / 6000K |
| Aluminum Channel Size | L17 x H9 mm |
| Finish Color | Silver |
| Length Options | 0.5m (20") / 1m (40") |
| Material | Aluminum Channel Shell |
| Mounting Style | Corner (90°) Mount |
| IP Rating | Non-Waterproof (IP20) |
| Application | Indoor lighting, showcase illumination, cove lighting, under-cabinet lighting |
| Package Quantity | 10 pcs / 50 pcs per pack |
Application
-
Retail display lighting
-
Under-shelf / under-cabinet lighting
-
Architectural or accent lighting
Wiring Tips
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
