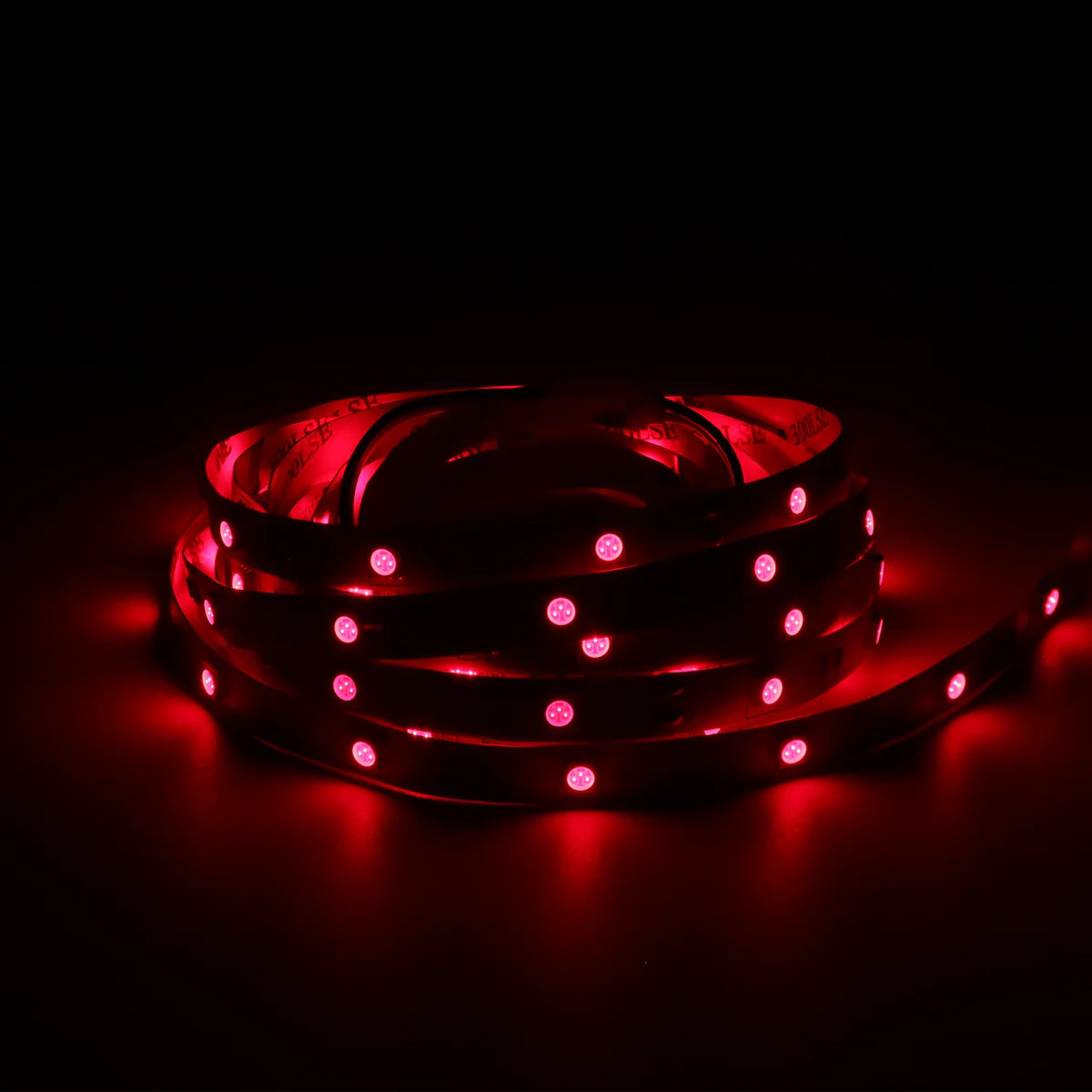

850nm IP65 Waterproof DC12V-IR LED Strips-SMD2835/SMD5050-30/60/120/240 LEDs/m-5/50 Meters-IR Night Vision, CCTV Camera, Security Camera, Machine Vision
LED Density Illustration
About this item
- 850nm infrared LED strip designed for IR night vision, CCTV camera support, security camera lighting, and machine vision projects.
- Available with SMD2835 and SMD5050 infrared LEDs.
- LED density options include 30, 60, 120, and 240 LEDs/m, depending on LED type and version.
- Operates on DC 12V with a 120° beam angle.
- IP65 waterproof silicone-covered surface for indoor and protected outdoor installations.
- Available in 5m × 1 Roll or 5m × 10 Rolls (50m Total).
- Dimmable with compatible DC12V dimmers.
- Flexible white PCB with self-adhesive backing for easy installation.
Technical Specification
| Specification | SMD5050 | SMD2835 |
|---|---|---|
| Wavelength | 850nm | 850nm |
| Color | Infrared | Infrared |
| Voltage | 12V DC | 12V DC |
| LED Density | 30 / 60 / 120 LEDs/m | 60 / 120 / 240 LEDs/m |
| LED Type | SMD5050 | SMD2835 |
| Beam Angle | 120° | 120° |
| Package Length | 5m × 1 Roll or 5m × 10 Rolls (50m Total) | 5m × 1 Roll or 5m × 10 Rolls (50m Total) |
| PCB Color | White | White |
| Protection Grade | IP65 Waterproof | IP65 Waterproof |
| Dimmable | Yes, with compatible dimmer | Yes, with compatible dimmer |
LED Density & Version Options
| LED Type | Density Options | Typical Use |
|---|---|---|
| SMD5050 | 30 / 60 / 120 LEDs/m | Higher-output infrared illumination, CCTV night vision systems, inspection lighting |
| SMD2835 | 60 / 120 / 240 LEDs/m | High-density infrared illumination, uniform lighting, machine vision applications |
Package Included
| Product Variant | Package Size | Package Included |
|---|---|---|
| 850nm SMD5050 30 LEDs/m | 5m × 1 Roll | 1 × 5m IR LED Strip 1 × Terminal Block |
| 850nm SMD5050 30 LEDs/m | 5m × 10 Rolls (50m Total) | 10 × 5m IR LED Strips 10 × Terminal Blocks |
| 850nm SMD5050 60 LEDs/m | 5m × 1 Roll | 1 × 5m IR LED Strip 1 × Terminal Block |
| 850nm SMD5050 60 LEDs/m | 5m × 10 Rolls (50m Total) | 10 × 5m IR LED Strips 10 × Terminal Blocks |
| 850nm SMD5050 120 LEDs/m | 5m × 1 Roll | 1 × 5m IR LED Strip 1 × Terminal Block |
| 850nm SMD5050 120 LEDs/m | 5m × 10 Rolls (50m Total) | 10 × 5m IR LED Strips 10 × Terminal Blocks |
| 850nm SMD2835 60 LEDs/m | 5m × 1 Roll | 1 × 5m IR LED Strip 1 × Terminal Block |
| 850nm SMD2835 60 LEDs/m | 5m × 10 Rolls (50m Total) | 10 × 5m IR LED Strips 10 × Terminal Blocks |
| 850nm SMD2835 120 LEDs/m | 5m × 1 Roll | 1 × 5m IR LED Strip 1 × Terminal Block |
| 850nm SMD2835 120 LEDs/m | 5m × 10 Rolls (50m Total) | 10 × 5m IR LED Strips 10 × Terminal Blocks |
| 850nm SMD2835 240 LEDs/m | 5m × 1 Roll | 1 × 5m IR LED Strip 1 × Terminal Block |
| 850nm SMD2835 240 LEDs/m | 5m × 10 Rolls (50m Total) | 10 × 5m IR LED Strips 10 × Terminal Blocks |
Order & Logistics
- Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
- Packing: Cardboard box.
- Shipping: From local warehouse (3–7 days) if available, or from HQ (9–18 days standard or 5–9 days express).
Type of LED & Waterproof IP Grade
- SMD5050: Larger LED package, suitable for stronger infrared output requirements.
- SMD2835: Compact LED package, suitable for higher-density and even infrared illumination layouts.
- 850nm Infrared: Commonly used for IR night vision, CCTV camera lighting, security monitoring, and machine vision support.
- Waterproof IP65: Surface covered with clear silicone to help protect against sprayed water from all directions.
Installation Tips
- Always disconnect the power supply before cutting or connecting LED strips.
- Do not crimp the strip or bend it sharply.
- Do not connect LED strips directly to 120V AC power.
- Use a compatible DC12V power supply.
- Apply power to test LED strips before final mounting.
How to Power / Control the Strip
When selecting a transformer:
- Choose wattage based on the total length and LED density of the strip.
- It is recommended to select a transformer with higher wattage than the total rated power to avoid full-load operation.
- Using a higher wattage transformer does not harm the strips and helps improve long-term stability.
Below please find the connection diagram for single color light strip for reference.
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
Applications
- IR Night Vision Lighting
- CCTV Camera Illumination
- Security Camera Support Lighting
- Machine Vision Lighting
- Industrial Inspection Lighting
- Security Monitoring Systems
- Indoor and Protected Outdoor Infrared Lighting Projects
