24V DC 5-in-1 Dimmable LED Power Supply – 60W / 100W / 200W UL Listed Waterproof LED Driver, AC 120–277V Input, Compatible with Triac / ELV / 0-10V / PWM / Resistive Dimming
24V DC 5-in-1 Dimmable LED Power Supply – 60W / 100W / 200W UL Listed Waterproof LED Driver, AC 120–277V Input, Compatible with Triac / ELV / 0-10V / PWM / Resistive Dimming
Package Included
| Version | Package Included |
|---|---|

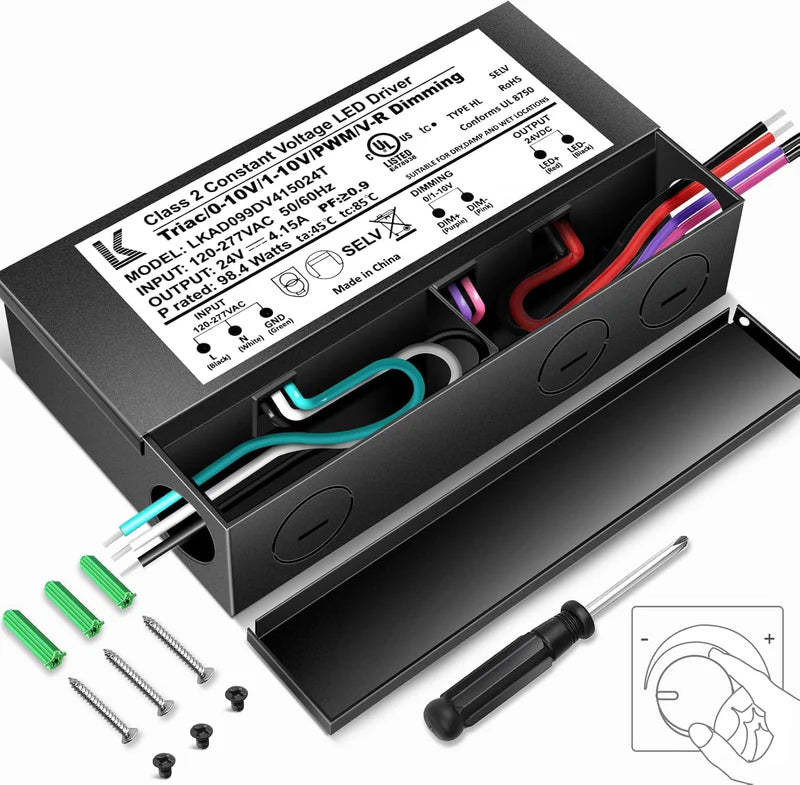

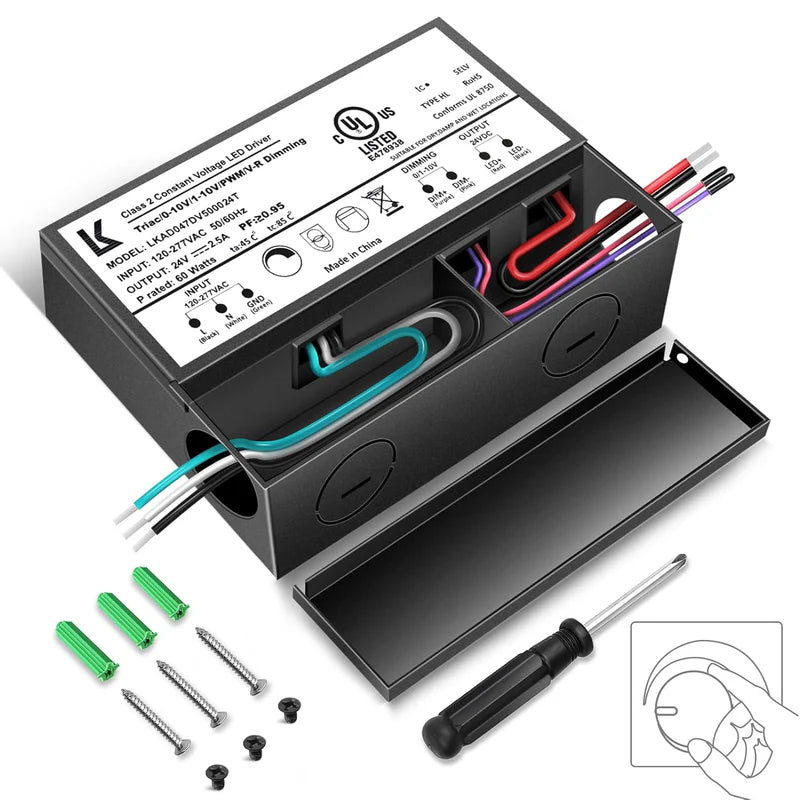

| 60W / 100W / 200W Power Supply | 1 × 24V Dimmable LED Driver, 1 × screwdriver, 3 × screws, 3 × screw nuts |
About this item
- 5-IN-1 dimmable LED driver for 24V LED lights, recessed lights, and smart lighting systems
- Works with Triac / ELV / 0-10V / 1-10V / MLV / PWM / V-R dimming
- Smooth, flicker-free dimming from 100% to 0%
- UL Listed, Type HL, SELV, RoHS; rated for damp locations
- Easy installation with wiring holes on three sides; includes screwdriver, screws, and nuts
- Built-in short-circuit, overload, and over-temperature protection

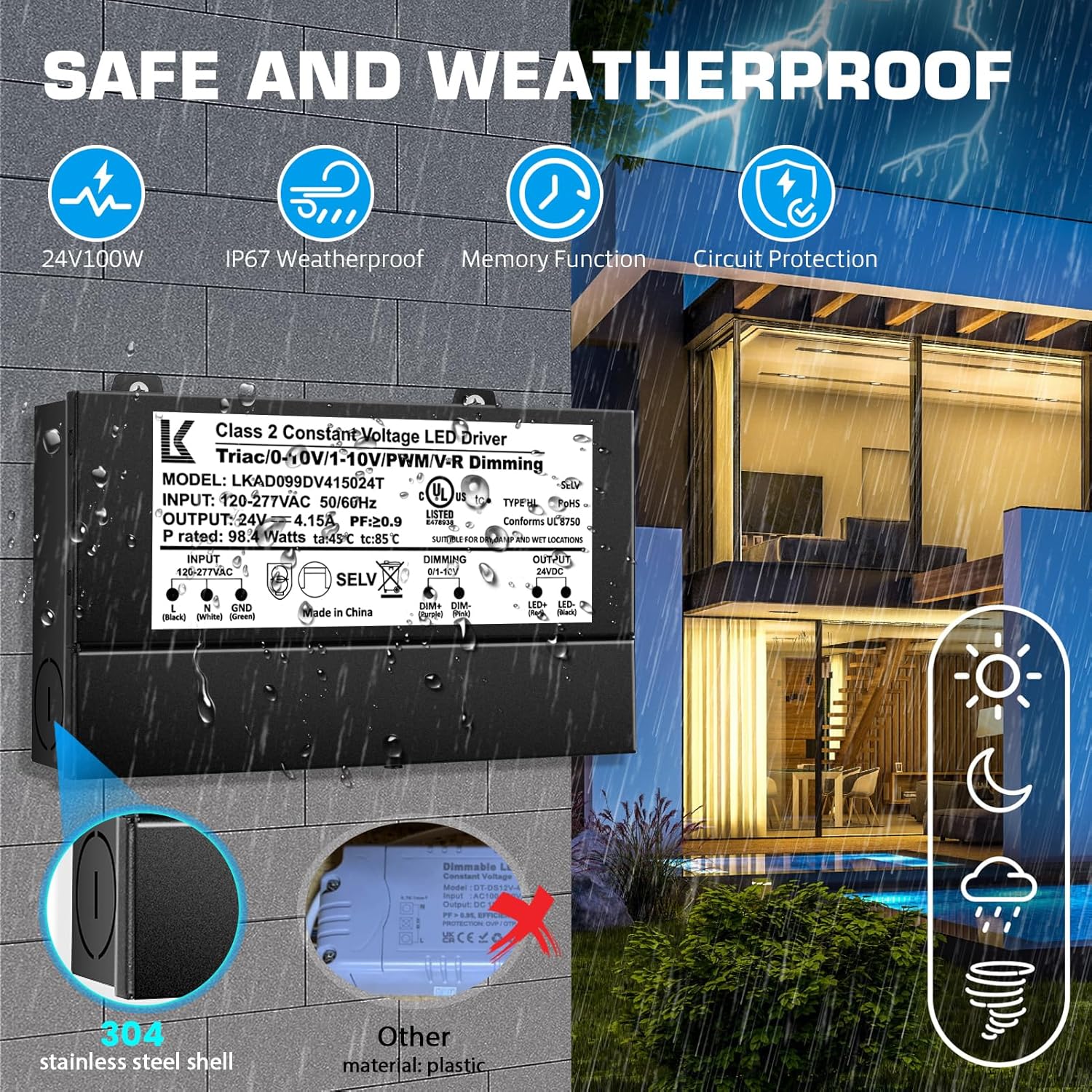

- IP67 waterproof design
Order & Logistics
Lead Time
- Ships within 1–3 business days
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
- Packing: Cardboard box, sealed with polybag for small parts
Key Specifications
- Input Voltage: 120–277V AC, 50/60Hz
- Output Voltage / Current: 24V DC, up to 4.15A (depending on wattage)
- Power Options: 60W, 100W, 200W

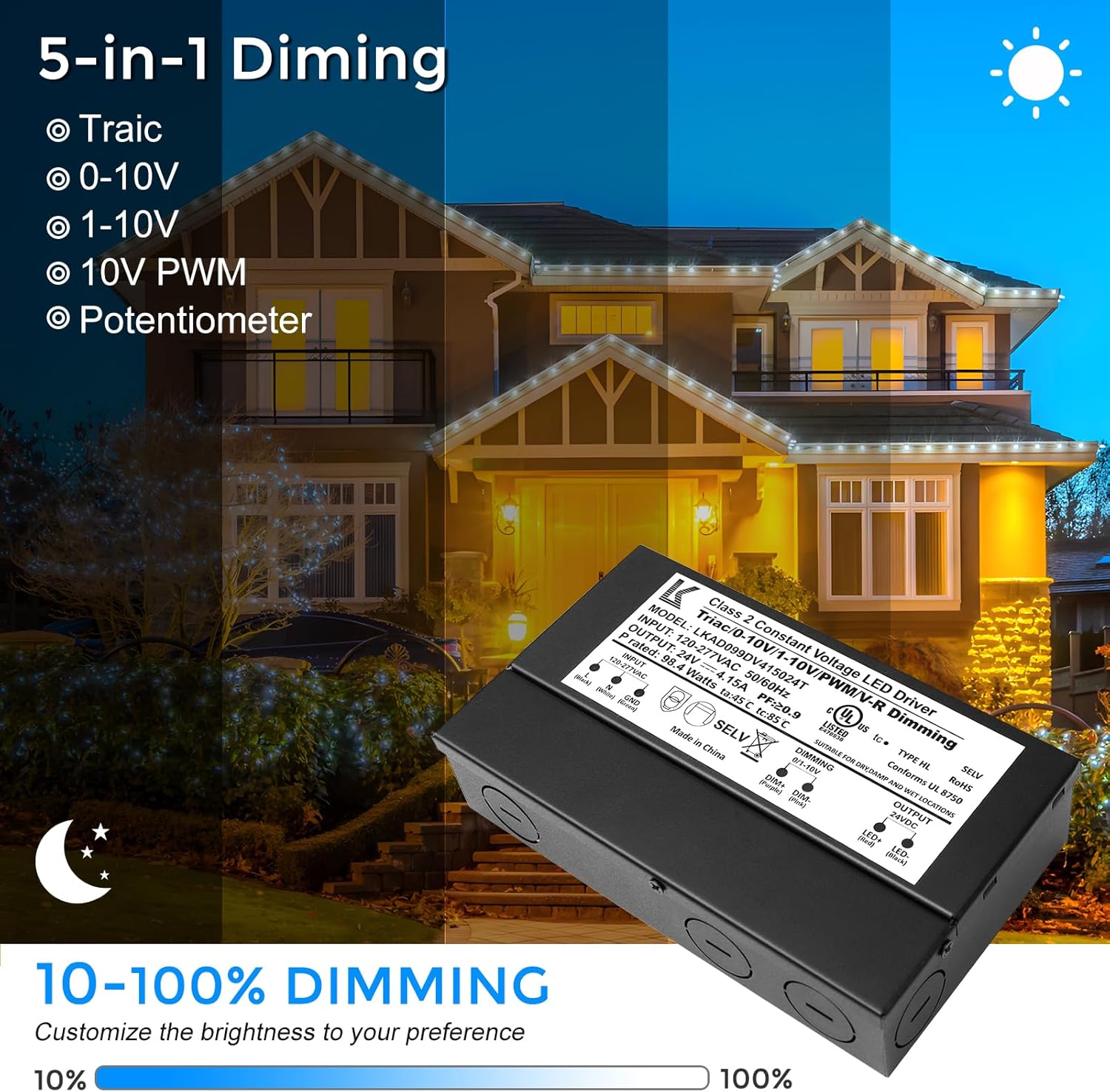

- Dimming Modes: Triac / ELV / 0-10V / 1-10V / MLV / PWM / V-R
- Safety: UL Listed, SELV, RoHS, short-circuit, overload, over-temperature protection
- Housing: IP67 waterproof, suitable for indoor and damp locations
Usage Notes / Installation Tips

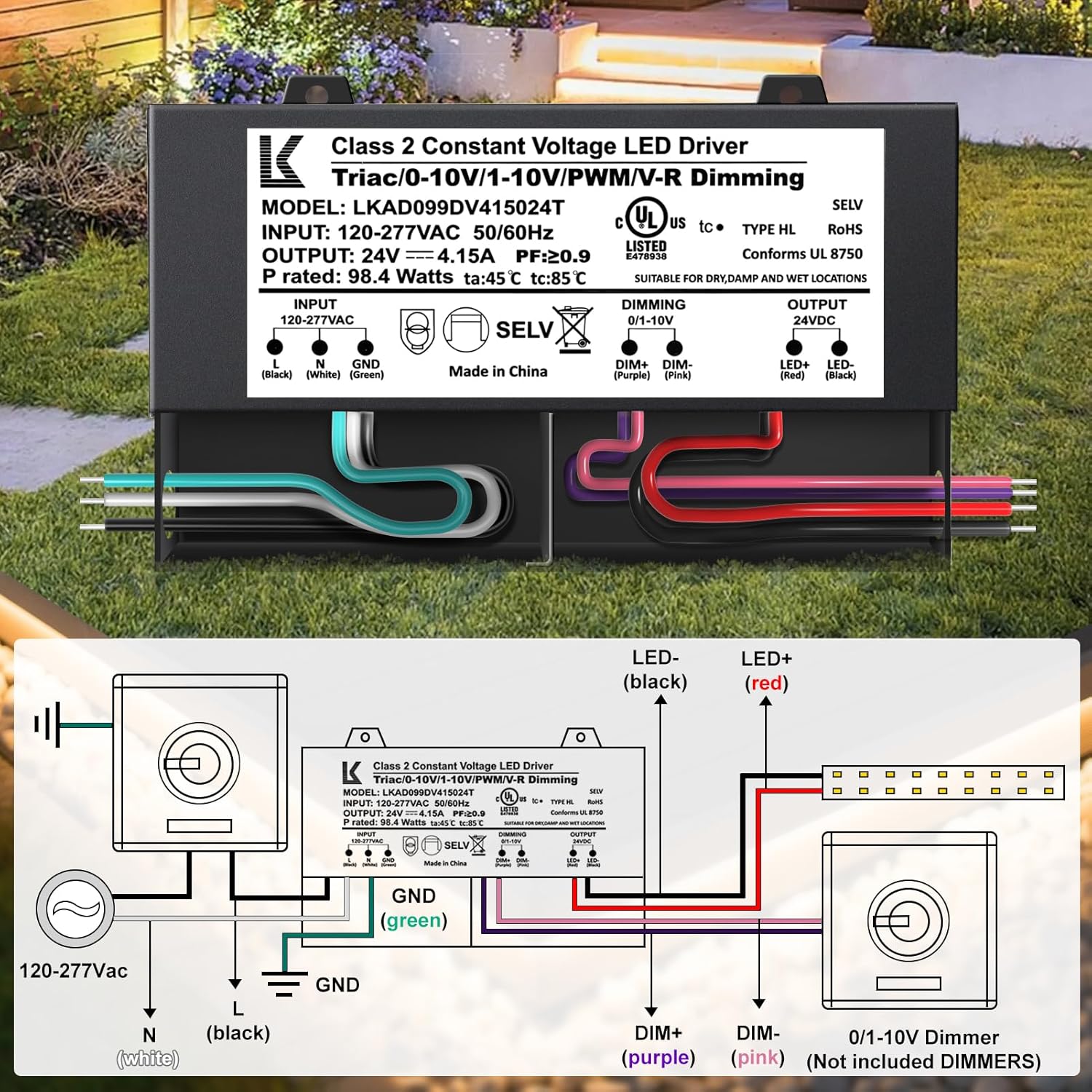

- Open terminal box and connect wires according to wiring diagram
- Ensure load does not exceed rated power
- Balance load if connecting multiple fixtures
- Disconnect power before installation or adjustments
- Suitable for residential and commercial 24V LED lighting systems
Technical Specifications
| Model | 24V DC 60W | 24V DC 100W | 24V DC 200W |
|---|---|---|---|
| Input voltage (AC) | 120–277VAC, 50/60Hz | 120–277VAC, 50/60Hz | 120–277VAC, 50/60Hz |
| Output (DC) | 24V ⎓ 2.5A, 60W Max | 24V ⎓ 4.16A, 100W Max | 24V ⎓ 8.33A, 200W Max |
| Dimming (5-in-1) | TRIAC / ELV / MLV / 0–10V / 1–10V / 10V PWM / Potentiometer (V-R) | TRIAC / ELV / MLV / 0–10V / 1–10V / 10V PWM / Potentiometer (V-R) | TRIAC / ELV / MLV / 0–10V / 1–10V / 10V PWM / Potentiometer (V-R) |
| Dimming range | 0–100% flicker-free | 0–100% flicker-free | 0–100% flicker-free |
| Certifications / Compliance | UL Listed, Type HL, SELV, RoHS | UL Listed, Type HL, SELV, RoHS, FCC | UL / cUL, FCC, Damp/Wet rated |
| Location rating / Waterproof | Damp location, IP67 | Dry / Damp / Wet, IP67 | Dry / Damp / Wet, IP67 |
| Efficiency / PFC | — | Up to 88%, Active PFC | High-efficiency design, PFC built-in |
| Operating / Case temp | ta: 45°C, tc: 85°C | ta: 45°C, tc: 85°C | IP67 sealed aluminum |
| Protections | Short-circuit, overload, over-temperature | Short-circuit, overload, over-temperature | Short-circuit, overload, over-temperature |
| Housing / Material | Metal enclosure with junction box | 304 stainless steel shell | Aluminum enclosure, sealed (IP67) |
| Installation features | 3-side wiring holes; includes screwdriver, screws, and nuts | 3-side wiring holes; dimmer terminals | Press-and-pull closure; versatile mounting |
| Product dimensions* | 5.11 × 3.93 × 2.15 in | 6.50 × 1.57 × 1.57 in | 9.17 × 4.65 × 1.93 in |
| Weight | 0.60 kg | 1.10 kg | 1.5 kg |
Applications
- Residential and commercial 24V LED lighting systems
- Recessed lighting, strip lights, and smart lighting setups
- Indoor or damp location applications requiring dimmable 24V LED drivers
- Compatible with wall dimmers for smooth ambiance control
