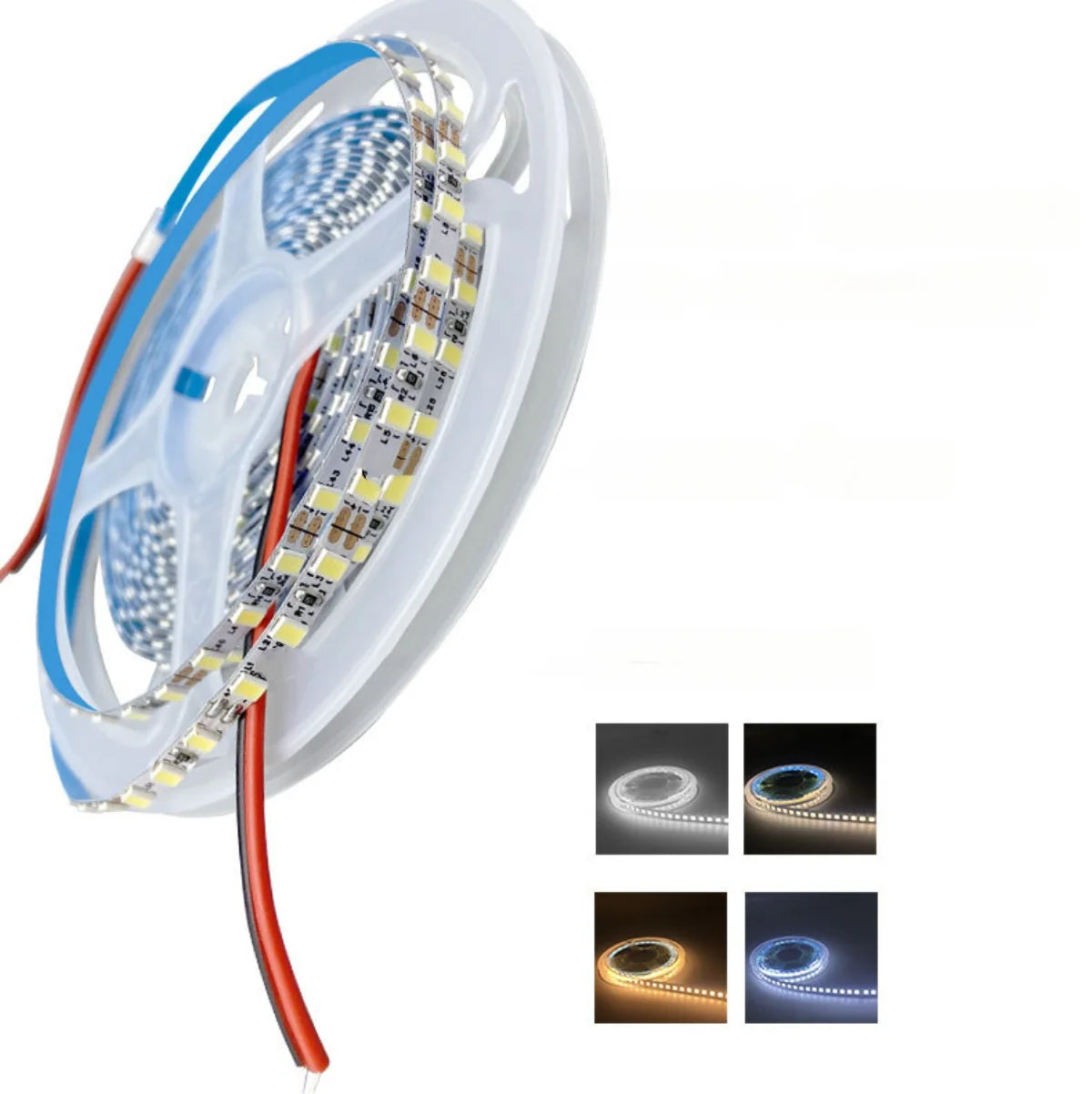

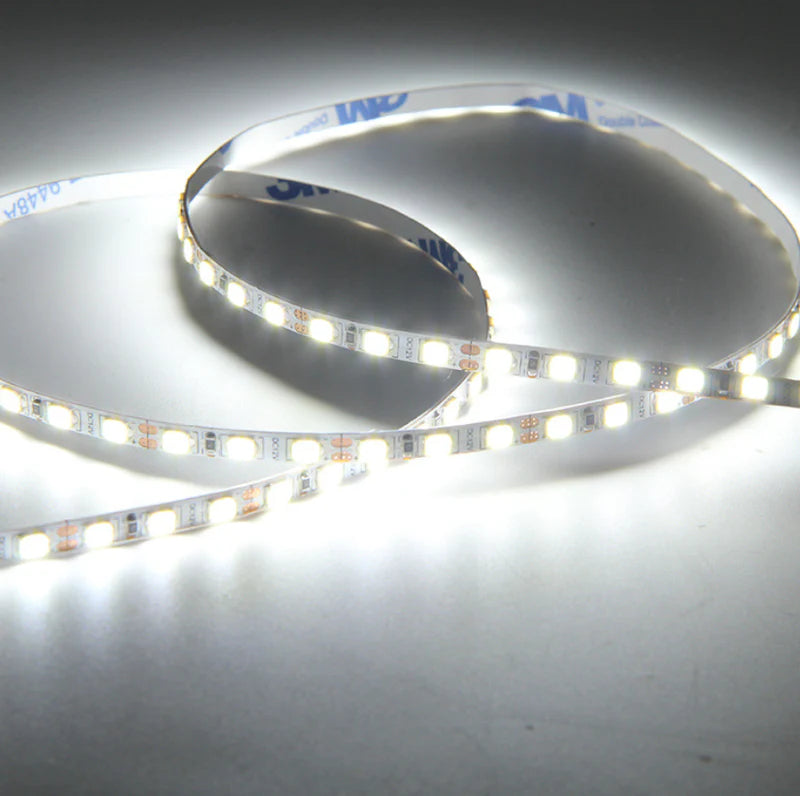

SMD2835 LED Strip Light, 5m Roll | 12V DC | 120 LEDs/m | 8W/m | White 3000K / 4000K / 6000K | 4mm / 5mm PCB | Non-Waterproof IP00
SMD2835 LED Strip Light, 5m Roll | 12V DC | 120 LEDs/m | 8W/m | White 3000K / 4000K / 6000K | 4mm / 5mm PCB | Non-Waterproof IP00
Package Included:
| Version | Package Included |
| 3000K | 4mm | 1 Roll × 5 m | 1 Roll × 5 m LED Strip Light Only, Do not include Power Supply and Controller |
| 3000K | 4mm | 2 Rolls × 5 m | 2 Rolls × 5 m LED Strip Light Only, Do not include Power Supply and Controller |
| 3000K | 5mm | 1 Roll × 5 m | 1 Roll × 5 m LED Strip Light Only, Do not include Power Supply and Controller |
| 3000K | 5mm | 2 Rolls × 5 m | 2 Rolls × 5 m LED Strip Light Only, Do not include Power Supply and Controller |
| 4000K | 4mm | 1 Roll × 5 m | 1 Roll × 5 m LED Strip Light Only, Do not include Power Supply and Controller |
| 4000K | 4mm | 2 Rolls × 5 m | 2 Rolls × 5 m LED Strip Light Only, Do not include Power Supply and Controller |
| 4000K | 5mm | 1 Roll × 5 m | 1 Roll × 5 m LED Strip Light Only, Do not include Power Supply and Controller |
| 4000K | 5mm | 2 Rolls × 5 m | 2 Rolls × 5 m LED Strip Light Only, Do not include Power Supply and Controller |
| 6000K | 4mm | 1 Roll × 5 m | 1 Roll × 5 m LED Strip Light Only, Do not include Power Supply and Controller |
| 6000K | 4mm | 2 Rolls × 5 m | 2 Rolls × 5 m LED Strip Light Only, Do not include Power Supply and Controller |
| 6000K | 5mm | 1 Roll × 5 m | 1 Roll × 5 m LED Strip Light Only, Do not include Power Supply and Controller |
| 6000K | 5mm | 2 Rolls × 5 m | 2 Rolls × 5 m LED Strip Light Only, Do not include Power Supply and Controller |
Order & Logistics:
- Lead Time: Ships directly from headquarters. Handling time 3–5 business days
- Shipping Note: This series enjoys our Free Shipping Policy for orders over $399.
- HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR
Product Features:
- Multiple Color Temperatures – Choose from 3000K Warm White, 4000K Neutral White, or 6000K Cool White to create the perfect ambiance.
- High Density & Brightness – 120 LEDs per meter with 8W/m power for consistent and uniform illumination.
- 12V DC Low Voltage – Safe and energy-efficient, ideal for indoor applications.
- Flexible PCB Width Options – Available in 4mm or 5mm PCB to suit different installation requirements and space constraints.
- Easy Installation – 5m roll, cuttable at specified intervals, compatible with standard LED strip connectors and aluminum channels.
Technical Specifications Table：
| Parameter | Specification |
| LED Type | SMD2835 |
| LEDs per Meter | 120 LEDs/m |
| Power Consumption | 8W per meter |
| Voltage | 12V DC |
| Color Temperatures | 3000K / 4000K / 6000K |
| PCB Width | 4mm / 5mm |
| Roll Length | 5m (16.4 ft) |

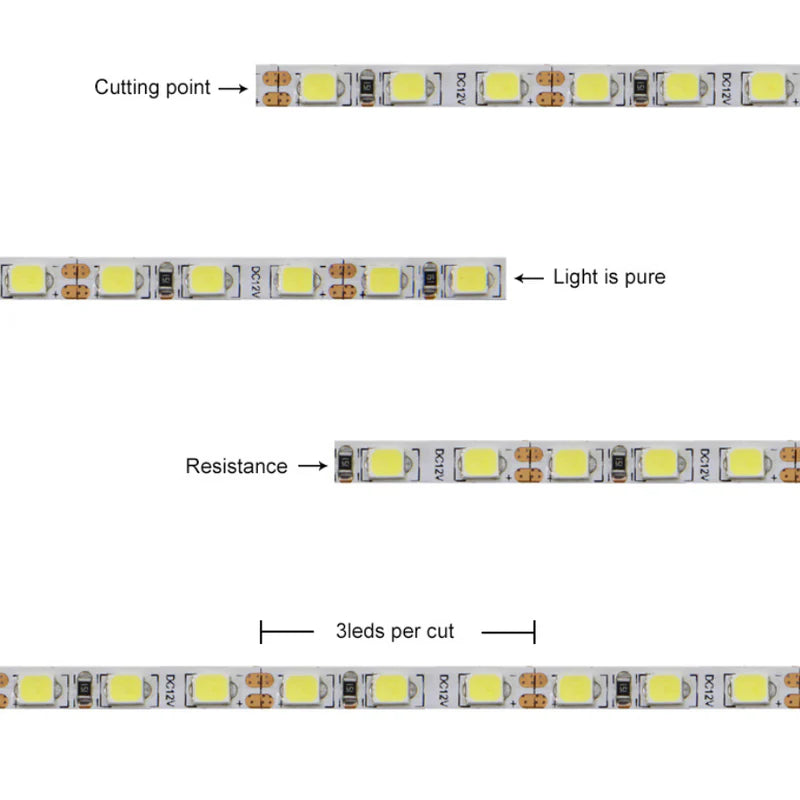

| Cutting Unit | Every 3 LEDs (~25mm) |
| Waterproof Rating | IP00 – Non-Waterproof |
| Working Temperature | -20°C to +50°C |
| Lifespan | 50,000 hours+ |
| Package Options | 1 Roll × 5m / 2 Rolls × 5m |
| CRI (Color Rendering Index) | Ra ≥ 80 |
| Beam Angle | 120° approx. |
How to power/control the strip
When choosing the transformer, the wattage depends on how many light strips it powers. We suggest using a higher wattage transformer than the strip rated power to avoid full load working. A big transformer does no harm to the strip and is safer.
Below are connection diagrams for reference:
a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers.
