LightingWill 8MM Wide SMD3535 RGB LED Strip Light - DC12V | 120 LEDs/M | 8mm PCB | Non-Waterproof | 5/50M | for Mirror, Kitchen Cabinet, Bedroom
LightingWill 8MM Wide SMD3535 RGB LED Strip Light - DC12V | 120 LEDs/M | 8mm PCB | Non-Waterproof | 5/50M | for Mirror, Kitchen Cabinet, Bedroom
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 10 Rolls × 5 m (328 ft total) (Strip Only) | 10 Rolls × 5 m (164 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 1 × 5 m Strip + 1 × Controller + 1 × Power Supply (Complete Kit) | 1 Roll × 5 m Strip + 1 × Controller + 1 × Power Supply (Complete Kit) |
About this item
-
High-Density 120 LEDs/m for Smooth RGB Lighting – Equipped with premium SMD3535 RGB chips arranged at 120 LEDs per meter, delivering brighter illumination and smoother color transitions compared to standard LED strips.
-
Premium Double-Layer PCB Structure – Built with a high-quality double-layer PCB for improved electrical stability, durability, and efficient heat dissipation during continuous operation.
-
Flexible 8 mm PCB Design – The flexible PCB allows the strip to bend easily around corners and curved surfaces, making it ideal for decorative installations and creative lighting layouts.
-

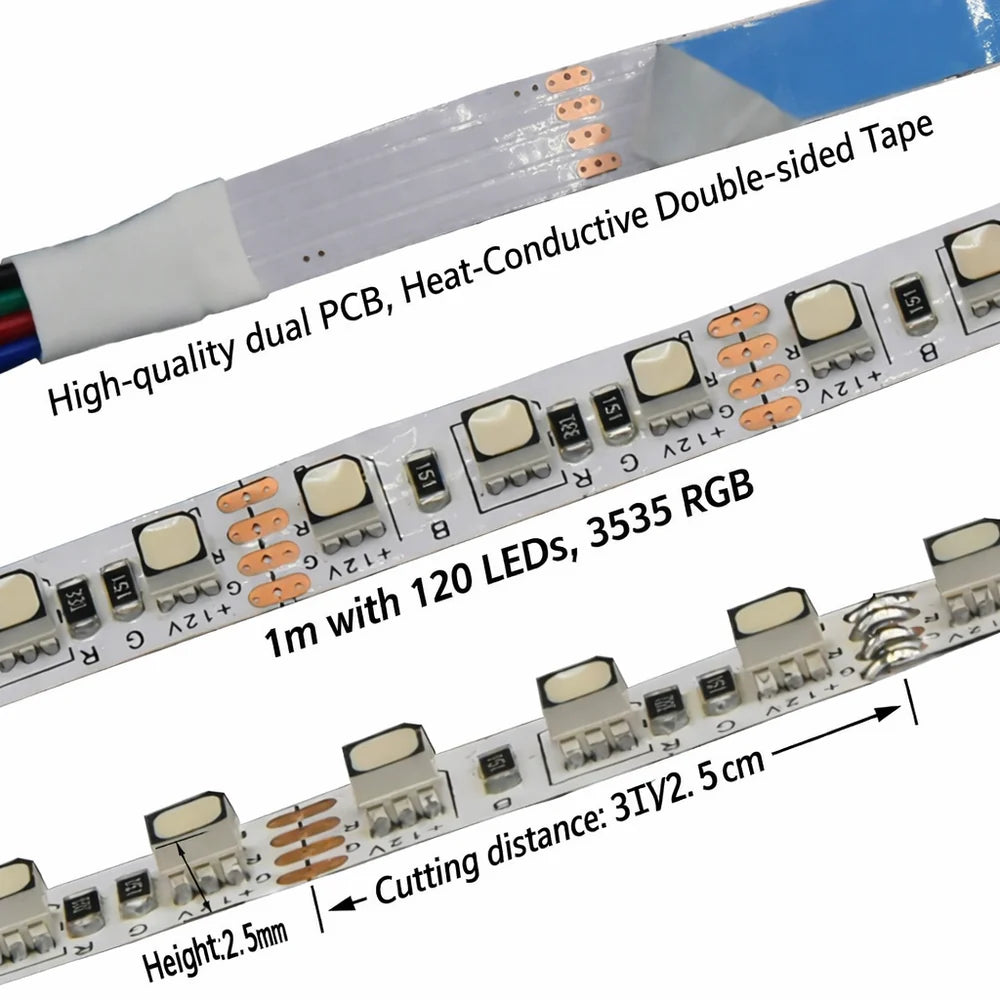

Cuttable Every 2.5 cm (3 LEDs) – Each segment includes 3 LEDs and can be cut every 2.5 cm at the marked cutting points without affecting the remaining strip, enabling precise length customization.
-
Low Voltage Safe Operation (DC12V) – Designed for DC12V power input for safer lighting installations. Compatible with RGB controllers for brightness adjustment, color selection, and lighting effects.
Order & Logistics
- Lead Time: Ships directly from headquarters. Handling time 3–5 business days
- Packing: Carton packaging with protective wrapping
- Shipping:
This series enjoys our Free Shipping Policy for orders over $399.
- HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.
Key Specifications
- Product Type: RGB Multicolor LED Strip Light
- Input Voltage: DC12V
- LED Type: SMD3535 RGB
- LED Density: 120 LEDs per meter
- PCB Width: 8 mm
- PCB Structure: Double-layer PCB
- Cutting Interval: 3 LEDs per segment (2.5 cm)
- Strip Thickness: 2.5 mm
- Protection Rating: Non-waterproof (IP20)
Technical Specifications
| Specification | Details |
| Product Type | RGB LED Strip Light |
| Input Voltage | DC 12V |
| LED Type | SMD3535 RGB |
| LED Density | 120 LEDs/m |
| Beam Angle | 120° |
| Power Consumption | 12–14 W per meter |
| PCB Width | 8 mm |
| PCB Material | Double-layer PCB |
| Protection Rating | Non-waterproof (IP20) |

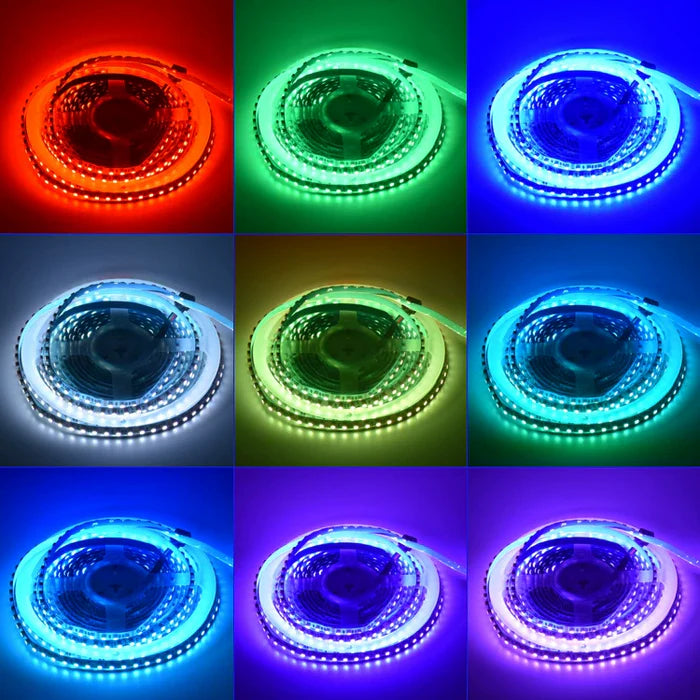

| Color Mode | RGB Multicolor |
| CRI | 80 |
| Lifespan | Up to 50,000 hours |
| Control Type | RGB Controller / Remote Control |
| Length | 5 m per roll |
Applications
- Home interior decoration
- Retail store displays
- Supermarket lighting accents
- Entertainment venues and bars
- Cabinet and shelf lighting
- Creative architectural lighting
Complete Kit Included:
Strip LED Density Compare:
Waterproof Strip Dimension
- Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
- Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction
- Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
- Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
About the Controller in the Complete Kit
Model: SP113E
SP113E 3CH PWM RGB LED Controller, with RE3 2.4G remote control. Built-in rich and diverse RGB color dynamic light effects, with 16 million color range. Utilizes 16KHz PWM high-frequency dimming technology to ensure smooth, even, and stable lighting.
- 3CH PWM RGB Control : Independent control of RGB three colors, built-in a variety of dynamic light effects.
- 16KHz PWM Utilizes : Utilizes 16KHz PWM high-frequency dimming technology to ensure smooth, even, and stable lighting.
- 2.4G RF Remote Control : Distance control up to 30 meters for quick and easy light setting.
- Color Correction: The remote control allows for quick color correction, ensuring that the function of the remote control's color keys matches the actual color of the light.
- 16 Million Colors: 16 million full-color color mixing, with a wealth of color options, with commonly used color gamut, to achieve rapid color mixing.
- Collected Effect Cycle: All lighting effects can be looped for added ambience.
- Timed Lights Off: Support 30 minutes, 60 minutes, 90 minutes timer to turn off the light
- Power-down Memory: Remember your last settings so you don't have to reset them the next time you use it
